A four inch mobile printer, which is the width a desktop or industrial machine prints. A full dispatch label, a pallet label or a rack location comes out of it while you are standing at the pallet or the rack, and the battery is built for a full day of it.

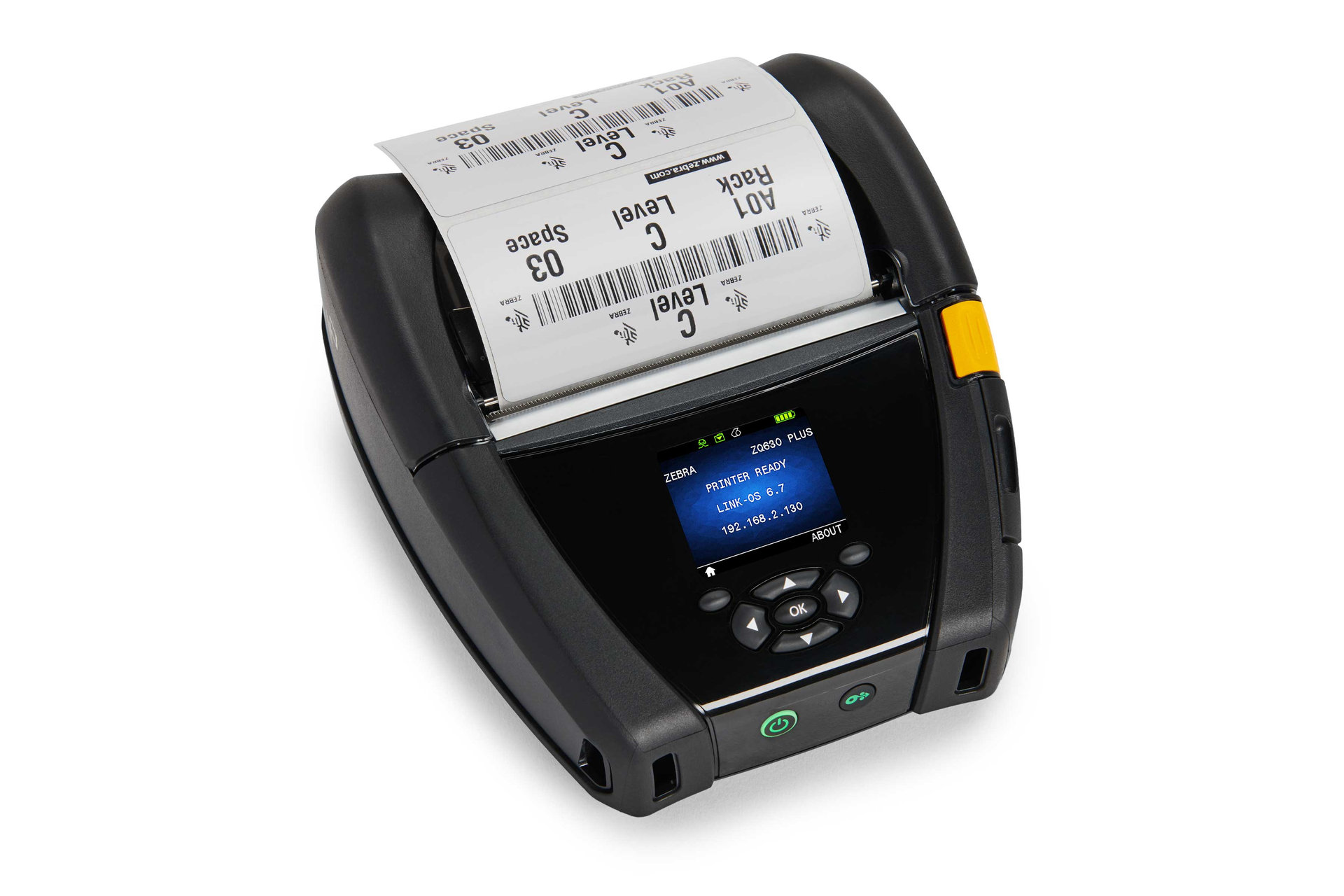

The photograph is the argument. Those are rack location labels — aisle, level, space, a barcode under each — printed at the racking rather than carried out from an office on a sheet.
What $2,079 buys. Part ZQ63-AAXAA04-00, exactly as Zebra ships it.

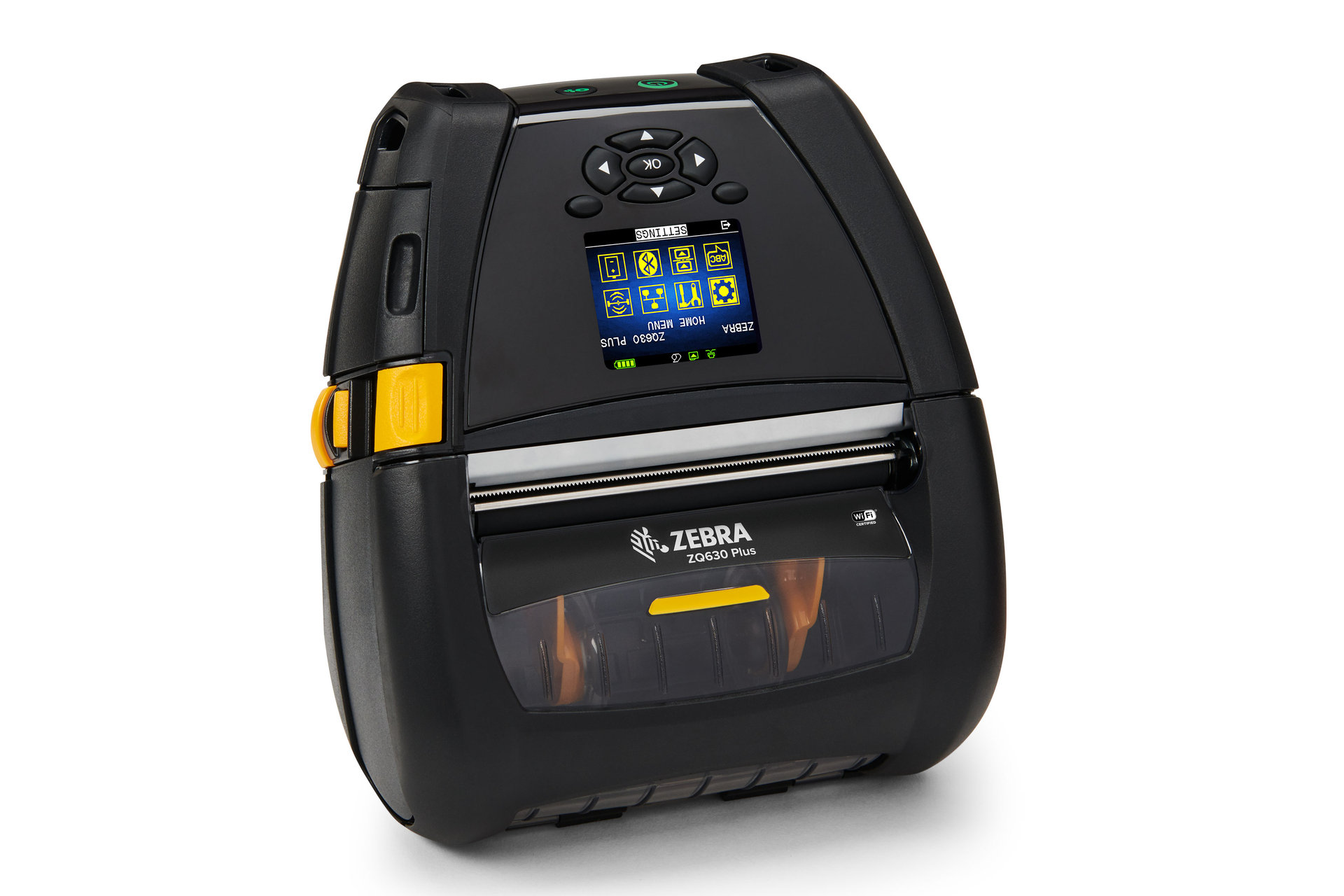

The yellow catch opens it one-handed, which is the whole point of where this printer gets used. The window is there so somebody can see the roll running out before it does.
Why this one
Four inches, and a battery twice the size.
This and the ZQ620 are the same printer in two widths. The extra $100 buys the wider label and a battery that lasts about twice as long, and the width is the part that cannot be worked around.
01
It prints the label the fixed machines print
Four inches is the standard 100 mm stock — an address label, a carton label, a pallet label, a rack location. If the label already comes off a ZD421 or a ZT411 at that width and you now want it printed out on the floor, this is the one that does it. The three inch machine cannot, at any setting.
02
6800 mAh, against 3250 on the three inch
Roughly double, and it is the reason this gets bought even where three inches would have done. A printer on a trolley or a forklift that runs most of the day is a different duty from one that prints forty labels at the shelf edge, and a flat battery mid-shift costs more than the difference in price.
03
Labelling the rack while standing at the rack
This is the job the photograph shows, and it is the one worth understanding. Bin and rack labels are ordinarily printed in an office, carried out on a sheet, and stuck up by somebody working from a list — which is where locations end up on the wrong bay. A four inch mobile printer moves the printing to the racking, so the label is made at the place it is about to go on.
04
No ribbon, so ask how long the label has to last
Direct thermal, like every mobile printer here. Nothing to load and nothing to replace, and the print fades with sunlight, heat and handling. A dispatch label read this week is exactly right. A rack label meant to still be scanned in three years is not — that wants thermal transfer on a fixed machine, or not a printed label at all.
05
And the same warning as its smaller sibling
The Plus models take different firmware and drivers from the ZQ600s they replace. Same printer to look at and to use; Zebra redesigned the electronics to keep the line available. Worth knowing before it joins a fleet somebody already manages.
Four inches is the whole question. If nothing you print on the move is wider than a shelf ticket, the ZQ620 is $100 less and lighter to carry all day. If anything is a full dispatch or pallet label, this is the only one of the two that prints it, and the bigger battery comes with it.
It is 203 dpi, which is right for barcodes and plain text. Both mobile printers are, and neither is the machine for small type or a dense 2D code on a little label.
What it costs
Part numbers and prices.
Australian dollars, including GST, excluding freight. Everything listed in the box is in the box — and one thing below is not
in it, and neither are labels and/or ribbons.
The box holds the printer and a battery. It does not hold anything to charge the battery with. If this is your first ZQ630, order the charger with it — otherwise it arrives, the battery runs down, and it sits on a desk until one turns up. If you already run these, you have chargers and can ignore this. Spare batteries, the battery dock and the shoulder strap are listed with their part numbers.
Zebra charger for QLN, ZQ5 and ZQ6 series printers · P1031365-043 · $129 inc GST
It takes media from 51 to 112 mm wide and prints 104 mm of
it, on a 19 or 34.9 mm core. The minimum width is the part worth
reading: the 50 mm rolls on the ZQ620
page are a millimetre under Zebra's figure for this machine, which is why
they are listed there and not here. There is no ribbon in this machine, so
everything below is direct thermal — the print fades with heat, light
and time, which is right for a docket or a label read this week and wrong
for one still being scanned in two years. The 104 mm lines are
receipt paper, not labels: continuous, no adhesive and no liner.
They are the same 57 m roll — the choice is a box of 25 or a
box of 50. Each line says how it is bought —
by the box, or a roll at a time where we can split one.
76 × 50 mm · 170 per roll · 19 mm core · 24 rolls to a box · LE076050DT19-170
100 × 150 mm · 95 per roll · 19 mm core · 12 rolls to a box · LE100150DT19-95-PERF
102 × 150 mm · 100 per roll · 19 mm core · sold by the roll · L102150DT19-100
104 mm wide × 57 m · continuous receipt paper, no labels · 25 rolls to a box · RE104DT57M-25
104 mm wide × 57 m · continuous receipt paper, no labels · 50 rolls to a box · RE104DT57M-50
1 year, return to base — the unit comes back to us for
repair or replacement rather than somebody coming out to you. Warranty runs by model
rather than by price, so it is worth checking against whatever else you are comparing.
01
In stock in Australia, and it ships straight to you
Every printer on this site is held in an Australian warehouse rather than on a shelf
in Sydney, and it goes from there to your door without stopping at our office. That
saves a leg of freight and a day. Paid before 2pm on a business day and it
generally leaves the same day.
02
Stock is first come, first served
Which is the honest half of the sentence above. A run on one model can mean a wait,
and you will hear that from us when you ask rather than after you have paid.
03
Tell us the part number and how many
That is genuinely all we need. You get a written quote back with freight worked out
to your actual address, because a printer to Parramatta and one to Port Hedland
are not the same delivery. On the items you can buy online the rate does not change
with distance, and the figure is on the button before you click it — a bigger
box costs more to send, so it is not the same figure on every item. A new account
pays before it ships, and the clock starts when the payment confirms.
04
Been comparing online? Send us the quote
If you have a written quote from somebody else on the same part number, we will
match it. No haggling required, and no need to pretend you have not been looking.
Tell us what you are printing, and onto what. Thirty-five years of these conversations says
the answer is usually simpler, and cheaper, than it looks from the inside.
