Zebra MC9400 · gun grip · seven keypads · freezer build

It weighs 300 grams more. Here is what that buys.

An MC9400 is 743 g. An MC3400 is 528 g as a gun and 442 g as a straight shooter. Across a ten hour shift, holstered or in hand, that difference is real and your people will tell you about it by three o'clock.

So the MC9400 has to earn it. On most floors it does not, and we will say so. On cold stores, yards and docks it earns it several times over — and there is one job it is the only answer to.

The decision, before the specification

Which one is yours?

Neither device is better. They are built for different floors, and the honest way to choose is to start with the floor.

Probably the MC3400

Normal temperature, normal handling

Each-picking, receiving, put-away and stocktakes in an ordinary distribution centre or retail back room. Devices that get dropped from shoulder height, out of a holster, off a trolley.

Lighter, cheaper, and available as a straight shooter as well as a gun — which the MC9400 is not. The MC3400.

The MC9400

When the floor fights back

Cold stores, yards, ports, docks and manufacturing. Devices that fall off a forklift mast onto steel decking rather than slipping out of a hand.

If your damage reports say dropped from height rather than slipped, that is a durability conversation and not a weight one. And if anything runs below freezing, the choice is already made.

Side by side, and these are Zebra's own figures rather than ours.

Zebra MC3400
  • 442 g straight shooter, 528 g gun
  • 4.0 inch display
  • Gun and straight shooter
  • Three keypads — 29, 38, 47 key
  • Drop 2.4 m to concrete at room temperature
  • Drop 1.8 m across −20 to +50 °C
  • No freezer build
  • Three memory tiers, from 4 GB
Zebra MC9400
  • 743 g with battery
  • 4.3 inch display
  • Gun grip only
  • Seven keypads — and they come off in the field
  • Drop 3.65 m to concrete at room temperature
  • Drop 2.4 m across −20 to +50 °C, 2.1 m freezer build
  • Freezer build to −30 °C
  • One memory tier — 6 GB and 128 GB, on every single one

Both run Wi-Fi 6E and Bluetooth 5.3, and both take a 7000 mAh battery — the freezer MC9400 takes a 5000 mAh cell rated for the cold instead. On wireless and on battery life there is nothing to choose between them, which is worth knowing because it is where people expect the difference to be.

The hazardous-area version is not sold here. Zebra build a non-incendive MC9400 for Class 1 Division 2 sites — flammable gas, dust or vapour — and it is a North American configuration that does not come through Australian channels. If that is your site, it is a different conversation and not one either of these devices finishes.

The reason people choose this one

Seven keypads. Two are named after your host system.

The MC3400 gives you three and you live with the choice. This gives you seven, and you can change your mind afterwards.

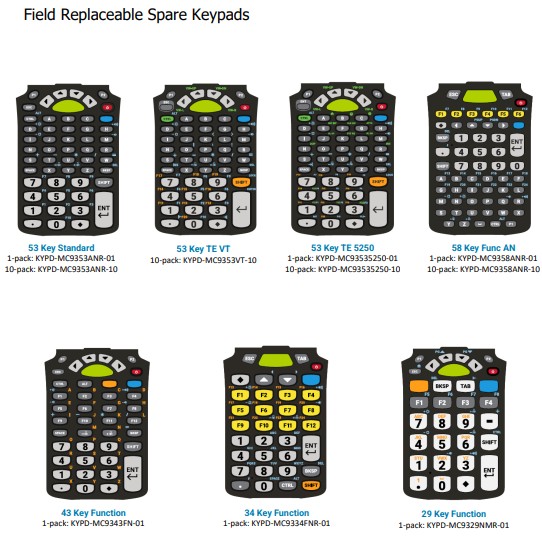

Zebra's own chart, and note the heading: field replaceable spare keypads. Every one has a part number you can order — the 53-key standard is KYPD-MC9353ANR-01, the 29-key is KYPD-MC9329NMR-01. Click it to read them at full size.
53-key TE

Laid out for the terminal you are emulating

Two of the seven exist for one reason: what the device is talking to. There is a 53-key IBM 5250 layout and a 53-key VT layout. If your warehouse system is a green screen on an AS/400, or a telnet session against a VT host, one of those puts the function keys where the host expects them and where the operator already knows they are.

Nobody selling from a price list will mention that. It is not a preference. It is whether the keypad matches the system on the other end.

The other five

How much actually gets typed

  • 29-key shifted alpha — counts, and a letter when you must
  • 34-key numeric — when counting is the work
  • 43-key shifted alpha — more text, still compact
  • 53-key standard — the common answer, and most of the stock
  • 58-key alpha numeric function — the most keys, for the most typing

More keys usually means more space between them. If people with larger hands are mis-hitting and re-keying quantities, that is not clumsiness. It is a keypad too small for the hand using it.

The keypad does not change the price. All seven cost the same. So choose it on which one fits the job and the hand — there is nothing to save by picking a smaller one, and nothing to justify by picking a bigger one. It is the one decision here with no money attached to it, and the one people agonise over most.

And if you get it wrong, you are not stuck with it. The keypad is a field-replaceable part — undo it, lift it off, put a different one on. Zebra document the procedure with a video: removing and replacing keypads.

Which changes the shape of the decision. A fleet does not have to be one thing forever. If the pickers want the 34-key and the receiving desk needs the 58, that is not an argument about the order — it is two part numbers and a screwdriver.

The job only this one does

The freezer build, and the switch nobody turns on.

The MC3400 has no cold-storage version at all. If your operation lives below zero, the decision was made before you got to this page.

An operator in a freezer jacket, balaclava and thermal gloves in a cold store aisle with fog hanging under the evaporator, scanning with a gun-grip Zebra MC9400.
Gloves on, breath in the air, and the same device carried out to a dock at ambient twenty minutes later. That cycle is what the freezer build is for — not the cold itself.
What it actually is

Three things, and none of them shows in a photograph

A heated scanner window, a heated touch panel and a battery rated for the cold. Rated to −30 °C, and it gives up a little toughness for it — 2.1 m rather than 2.4 m across temperature.

The heaters are not there to keep the operator's hands warm. They stop the device reaching the temperature where water forms on it when it comes out into ambient air. Condensation is what kills these, and it kills them slowly enough that nobody connects the two.

A Sydney meat wholesaler bought three of these in November 2025 and two more nine months later, after a summer in a cold store. What that looked like, with their name on it.

Read this bit

The touch panel heater ships turned off

From Zebra's own manual, on the Heater Control application: Touch Panel Heater (default — disabled). And then, in the same paragraph: “This option should always be enabled for the heater to function properly.”

So a freezer device that arrives in its carton has half its heating switched off. If somebody forwards you the box, nobody turns it on, and you find out the first time a screen fogs and an operator wipes it on a sleeve. It is on the list of things we do before a device leaves here.

One combination does not exist. There is no cellular freezer device — not on the MC9400 and not on the MC3400. We checked every part number in both ranges. If you need 5G and cold storage, that is worth knowing now rather than after a purchase order.

The range

Part numbers, and what is in the box.

We quote this one rather than list a price — the configuration, the quantity and what you need staged all move the number.

MC9401-0G1J6DSS-A6

53-key, indoor and outdoor

53-key standardSE4770 — Indoor and outdoor6 GB memory, 128 GB storage

$3,795 inc GST

In stock

  • Zebra MC9401 Gun 53 Key 2D-SR 6/128 AD/GMS
  • 7000 mAh Standard Battery
MC9401-0G1M6DCS-A6

53-key, up to about 30 m

53-key standardSE58 — Up to about 30 m6 GB memory, 128 GB storageFreezer build

$4,059 inc GST

In stock

  • Zebra MC9401 Gun Freezer 53 Key 2D-ER 6/128 AD/GMS
  • 5000 mAh Battery
MC9401-0G1R6DSS-A6

53-key, up to about 30 m

53-key standardSE58 — Up to about 30 m6 GB memory, 128 GB storageCamera

$3,995 inc GST

In stock

  • Zebra MC9401 Gun 53 Key 2D-ER 6/128 AD/GMS CAM
  • 7000 mAh Standard Battery
MC945B-3G1M6DSS-A6

53-key, up to about 30 m

53-key standardSE58 — Up to about 30 m6 GB memory, 128 GB storageCellular 5G

$4,059 inc GST

Low stock

  • Zebra MC9450 Gun 53 Key 2D-ER 6/128 AD/GMS
  • 7000 mAh Standard Battery

Memory is not a decision on this device. Every MC9400 is 6 GB and 128 GB — all forty versions of it. On the MC3400 there are three tiers and it is a real choice. Here there is nothing to weigh up, which is one fewer thing to get wrong.

The rest of the catalogue

Every configuration Zebra will build.

The ones above are what we hold and price. These are everything else that can be ordered, grouped by keypad, because that is the decision.

29-key — 4 configurations

  • MC9401-0G1M6ASS-A6SE58 — Up to about 30 m · 6 GB / 128 GB
  • MC9401-0G1R6ASS-A6SE58 — Up to about 30 m · 6 GB / 128 GB · camera
  • MC945B-3G1M6ASS-A6SE58 — Up to about 30 m · 6 GB / 128 GB · cellular
  • MC945B-3G1R6ASS-A6SE58 — Up to about 30 m · 6 GB / 128 GB · cellular · camera

34-key — 6 configurations

  • MC9401-0G1J6BSS-A6SE4770 — Indoor and outdoor · 6 GB / 128 GB
  • MC945B-3G1J6BSS-A6SE4770 — Indoor and outdoor · 6 GB / 128 GB · cellular
  • MC9401-0G1M6BSS-A6SE58 — Up to about 30 m · 6 GB / 128 GB
  • MC9401-0G1R6BSS-A6SE58 — Up to about 30 m · 6 GB / 128 GB · camera
  • MC945B-3G1M6BSS-A6SE58 — Up to about 30 m · 6 GB / 128 GB · cellular
  • MC945B-3G1R6BSS-A6SE58 — Up to about 30 m · 6 GB / 128 GB · cellular · camera

43-key — 6 configurations

  • MC9401-0G1J6CSS-A6SE4770 — Indoor and outdoor · 6 GB / 128 GB
  • MC9401-0G1M6CCS-A6SE58 — Up to about 30 m · 6 GB / 128 GB · freezer build
  • MC9401-0G1M6CSS-A6SE58 — Up to about 30 m · 6 GB / 128 GB
  • MC9401-0G1R6CSS-A6SE58 — Up to about 30 m · 6 GB / 128 GB · camera
  • MC945B-3G1M6CSS-A6SE58 — Up to about 30 m · 6 GB / 128 GB · cellular
  • MC945B-3G1R6CSS-A6SE58 — Up to about 30 m · 6 GB / 128 GB · cellular · camera

53-key — 14 configurations

  • MC9401-0G1J6DCS-A6SE4770 — Indoor and outdoor · 6 GB / 128 GB · freezer build
  • MC9401-0G1J6ESS-A6SE4770 — Indoor and outdoor · 6 GB / 128 GB
  • MC9401-0G1J6GSS-A6SE4770 — Indoor and outdoor · 6 GB / 128 GB
  • MC9401-0G1P6DSS-A6SE4770 — Indoor and outdoor · 6 GB / 128 GB · camera
  • MC9401-0G1P6GSS-A6SE4770 — Indoor and outdoor · 6 GB / 128 GB · camera
  • MC945B-3G1J6DSS-A6SE4770 — Indoor and outdoor · 6 GB / 128 GB · cellular
  • MC945B-3G1P6DSS-A6SE4770 — Indoor and outdoor · 6 GB / 128 GB · cellular · camera
  • MC9401-0G1M6DSB-A6SE58 — Up to about 30 m · 6 GB / 128 GB · BLE battery
  • MC9401-0G1M6DSS-A6SE58 — Up to about 30 m · 6 GB / 128 GB
  • MC9401-0G1M6ESS-A6SE58 — Up to about 30 m · 6 GB / 128 GB
  • MC9401-0G1M6GSS-A6SE58 — Up to about 30 m · 6 GB / 128 GB
  • MC9401-0G1R6GSS-A6SE58 — Up to about 30 m · 6 GB / 128 GB · camera
  • MC945B-3G1R6DSS-A6SE58 — Up to about 30 m · 6 GB / 128 GB · cellular · camera
  • MC945B-3G1R6GSS-A6SE58 — Up to about 30 m · 6 GB / 128 GB · cellular · camera

58-key — 6 configurations

  • MC9401-0G1J6HSS-A6SE4770 — Indoor and outdoor · 6 GB / 128 GB
  • MC945B-3G1J6HSS-A6SE4770 — Indoor and outdoor · 6 GB / 128 GB · cellular
  • MC9401-0G1M6HSS-A6SE58 — Up to about 30 m · 6 GB / 128 GB
  • MC9401-0G1R6HSS-A6SE58 — Up to about 30 m · 6 GB / 128 GB · camera
  • MC945B-3G1M6HSS-A6SE58 — Up to about 30 m · 6 GB / 128 GB · cellular
  • MC945B-3G1R6HSS-A6SE58 — Up to about 30 m · 6 GB / 128 GB · cellular · camera

That is 36 further configurations on top of the 4 above, read from our distributor's catalogue on 13 September 2026. We refresh it on Monday mornings, so by the end of the week it can be a little behind — Zebra add and drop configurations without telling anybody.

None of these are held here, which is the one thing that cannot go stale on this list. They are built to order: pre-paid, with a real lead time we tell you before you commit rather than after — how buying works has the rest of it.

Nobody publishes this

How to read any MC9400 part number.

Including one somebody else has quoted you. Every option is in the code — and it is the same key as the MC3400, with different keypad letters.

MC9401 - 0 G 1 J 6 D SS - A6 │ │ │ │ │ │ │ │ │ └─ keypad │ │ │ └─── memory │ │ └───── scan engine, and camera or not │ └───────── body: G gun grip, S straight └────────────────── model: MC9401 wifi, MC9450 adds cellular 5G

Scan engine & camera

D
SE4710 standard range
J
SE4770 indoor and outdoor
K
SE55 near, and up to about 12 m
M
SE58 up to about 30 m
P
SE4770 indoor and outdoor, with camera
R
SE58 up to about 30 m, with camera

Memory

4
4 GB memory, 64 GB storage
5
6 GB memory, 64 GB storage
6
6 GB memory, 128 GB storage

Keypad

A
29-key shifted alpha
B
34-key numeric
C
43-key shifted alpha
D
53-key standard
E
53-key VT emulator
G
53-key IBM-5250 emulator
H
58-key alpha numeric function

So MC9401-0G1J6DSS-A6 reads: wifi model, gun grip, SE4770 indoor and outdoor, no camera, 6 GB and 128 GB, 53-key standard. Which is one of the ones listed above.

Why this is worth two minutes of your time. Take any quote you have been given, for these or for anything else in the range, and read it. You will see whether you are being offered a camera you did not ask for, the standard scan engine where the job needs the long one, or a different memory tier from the one you were comparing against. That is not a trick anybody is playing — it is usually just a code nobody expanded.

We worked this out; Zebra did not publish it. Or if they did, we could not find it. The key above is read off ninety-six part numbers across both ranges and it decodes every one of them, and it agrees with the scan engines Zebra do document. We are telling you that rather than presenting it as gospel — and -A6 on the end is the region code, so a part number from another market is not the same device.

What it replaces

MC9090, MC9190, MC9200, MC9300

The same brick, the same gun grip, the same job, under four badges and three company names. If yours still work, nothing here is urgent — but the batteries get harder to buy every year. What replaces what, and what the move actually costs.

Before you buy anywhere

“We will not support it unless you buy it from us”

If your software vendor also sells hardware, you may have heard that. Software support, the manufacturer's warranty and the staging in between are three different responsibilities. How they actually divide up, and the one question worth putting in writing.

Cradles — the same ones the MC9300 uses

An MC9400 sits in an MC93 cradle, and so does an MC9300 — one rack, both generations, which is the cheap half of a fleet move. Neither will sit in an MC9100 or MC9200 cradle without the charge-only adapter cup, and that gives up the data connection. The full parts list is on the MC9300 page.

Zebra Dock Charge/USB for MC93/MC94/MC9450, 1-Bay
CRD-MC93-2SUCHG-01

Dock Charge/USB for MC93/MC94/MC9450, 1-Bay

$385 inc GST · Back in 50+

Zebra Multidock Charge for MC93/MC94/MC9450, 4-Bay
CRD-MC93-4SCHG-01

Multidock Charge for MC93/MC94/MC9450, 4-Bay

$649 inc GST · In stock

Zebra Multidock Ethernet Charger Cradle for MC93, 4-Bay
CRD-MC93-4SETH-01

Multidock Ethernet Charger Cradle for MC93, 4-Bay

$1,265 inc GST · Ask us

Zebra Multidock Battery/Charge for MC93/MC94XX, 4-Bay
SAC-MC93-4SCHG-01

Multidock Battery/Charge for MC93/MC94XX, 4-Bay

$520 inc GST · In stock

Zebra guide MC9400 Accessories GuideZebra · 18 pages · PDF, 2.8 MB · cradles, batteries, keypads and what each one needs to run Download →
And then what

A scanner is where it starts, not where it ends.

On its own, a scan is a beep. What makes a device worth buying is what comes off it — and with the right app, what comes off this one is a file every day that says what was checked, what was intended, and who did it. No server, nothing connected to your systems, nothing anybody has to approve.

The long-range engine is what lets somebody check stock they would otherwise have to climb to. The file is what shows whether they did.

Scan, file, report, decision

The file is written on the device as the work happens, and a month of them says things nobody in the building currently knows — which parts get confused with each other, which steps cause the errors, and how often the answer was already in somebody's hand. Nobody reads a single day's data without a reason to. A month is a different question.

Part & Qty Check is the first one we built. It is in service on the MC3400 rather than this one, which is the point: same Android, same scan engines, and an app written for your process runs on whichever of them suits the job. Custom Android apps is the honest version of when having one written is worth it — and the three cheaper answers that usually win instead.

The app is not in the carton

The device is one price and the app is another, always. Every build is written around one warehouse's part numbers and one warehouse's process, so there is nothing on this page that arrives bundled with software you did not ask for.

Buy the hardware on its own and it is the hardware — same Zebra warranty, same spares, same people answering the phone either way.

Tell us how cold it gets, and what it plugs into.

Those two answers pick the build and the keypad between them. Add how many, and we can tell you what it costs and what is on the shelf — and whether it is worth us driving out with the keypads so your people can hold them.
